Ringbot rolls on a single wheel and uses legs to steer

In an age where technology constantly seeks to merge the realms of imagination with reality, a recent innovation takes a page out of the iconic Star Wars saga to bring us a glimpse into the future of robotic mobility. The creation in focus is the Ringbot, a unique robot that maneuvers on a singular large wheel, guided by extendable legs for steering. This concept is the brainchild of Associate Professor Joohyung Kim and his team at the University of Illinois Urbana-Champaign, drawing inspiration not only from the cinematic universe of Star Wars but also from the real-world engineering of monowheels and advanced robotics.

The Ringbot’s design centers around a 515-mm-diameter wheel made from a composite of nylon and carbon, encased in a solid elastomer tire for durability and traction. This wheel is propelled by two motorized driving modules situated within the rim, which engage the surface through small cog wheels. The innovative aspect of these modules is their connection via a stretchable curly cord, allowing for dynamic adjustment of their positions to maintain balance or steer by altering the robot’s center of mass.

Steering and stabilization are achieved through articulated robotic legs attached to the modules. These legs can extend outward to shift balance for turning or reach down to the ground to support the robot when stationary. They play a crucial role in preventing falls and enabling the Ringbot to right itself if tipped over, showcasing an adaptive design that echoes the capabilities of living creatures.

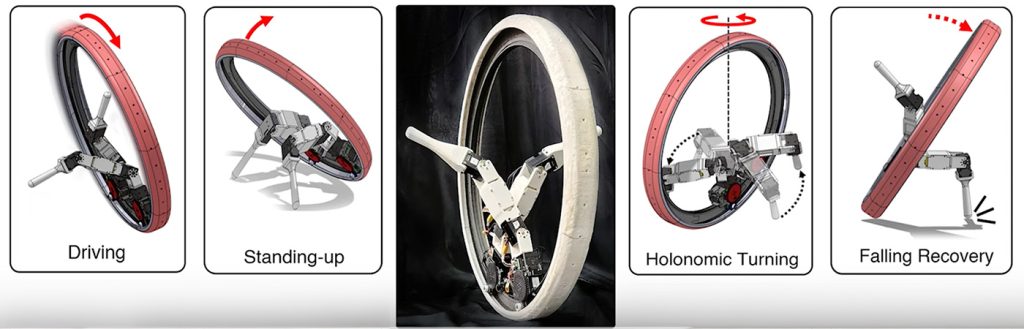

Ringbot Monocycle Robot with Legs Capabilities
Different capabilities of the Ringbot. Images courtesy University of Illinois Urbana-Champaign

The current prototype has been tested in indoor environments, controlled remotely to reach speeds of up to 5 km/h (approximately 3 mph). These tests underline the potential for the Ringbot to navigate various terrains and conditions with agility and precision. However, the ambitions for this robot extend far beyond its present capabilities.

Looking forward, the development team envisions a more advanced version of the Ringbot that could autonomously navigate urban environments. Equipped with cameras, sensors, and GPS, future iterations of the Ringbot could seamlessly integrate into the bustling streets of cities, undertaking tasks such as delivering packages to businesses and individuals. This vision is motivated by the current reliance on bikes and motorcycles for last-mile delivery services in urban areas, which, despite their efficiency, face limitations in navigating congested spaces and overcoming physical barriers.

Monocycle Ringbot Legs Down Standing
The Ringbot sets its legs down when standing.

The proposed enhancements to the Ringbot aim to transcend these limitations, offering a versatile and efficient alternative for urban delivery services. By combining the speed and agility of wheeled transport with the adaptability of legged movement, the Ringbot could offer an innovative solution to the challenges of last-mile delivery in densely populated settings. This includes the ability to traverse obstacles, navigate narrow pathways, and even ascend stairs, features that are critical for seamless operation in urban landscapes.

Monocycle Ringbot Overcoming Obstacles
The Ringbot overcoming various obstacles.

The research and development of the Ringbot have been supported in part by funding from the Hyundai Motor Group, indicating significant interest from the automotive and technology sectors in this innovative approach to robotic mobility. The project’s findings and progress have been documented in a recent publication in the journal IEEE Transactions on Robotics, marking a significant milestone in the journey of the Ringbot from concept to reality.

As the Ringbot continues to evolve, it stands as a testament to the creative and practical application of robotics in solving real-world problems. By drawing inspiration from the realms of science fiction and existing technological advancements, the Ringbot project exemplifies the ongoing dialogue between imagination and innovation in the field of robotics. With continued development and refinement, the Ringbot could soon become an integral part of our daily lives, redefining what is possible in robotic mobility and delivery services.

Monocycle Ringbot with Legs Standing Up
The Ringbot uses its extendable legs to right itself from a fall.

Source: University of Illinois Urbana-Champaign
